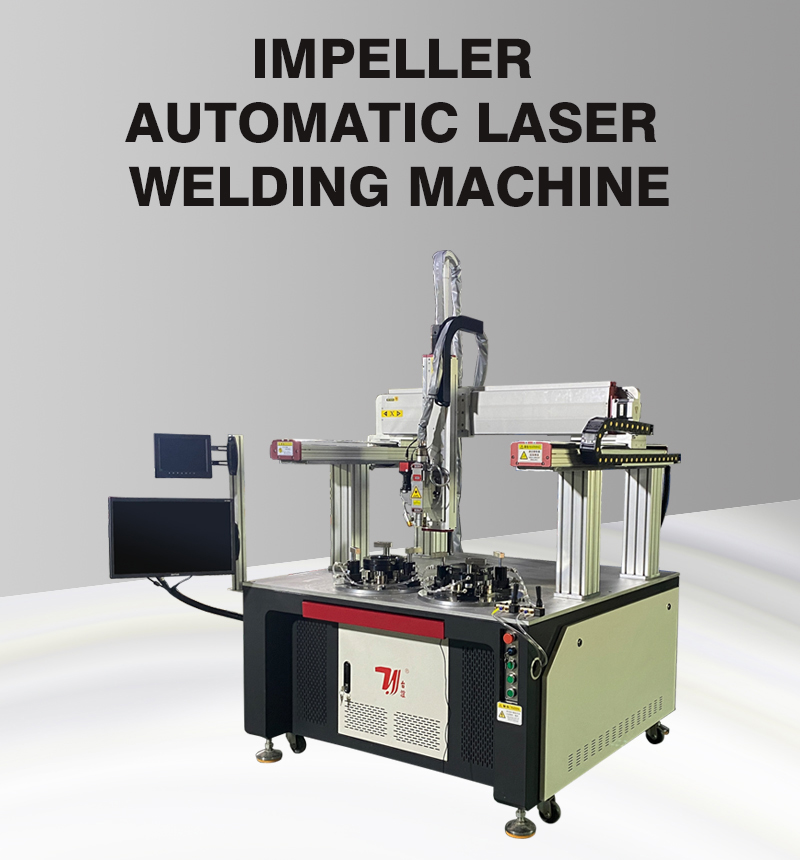

CNC Automatic Fiber Laser Welding Machine for High Pressure Water Pump Impeller

Product Categories

Taiyi Laser Technology Company Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: CNC Automatic Fiber Laser Welding Machine for High Pressure Water Pump Impeller
Brand: TAIYI
Price: 1 USD

Brand Name : TAIYI

Model Number : TY-HS2018

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : Contact us for the price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 set per.month

Packaging Details : Export standard packing

Delivery Time : 15-30 work days

Product name : Impeller Laser Welding Machine

Laser power : 1500W- 6000W

Welding material : Metal Stainless Steel Aluminum

Laser wavelength : 1070nm

Voltage : 380V/220V, 50/60Hz

Cooling System : Water Cooling

Positioning accuracy : Red light position

Repeating Precision : ±0.01mm

Pulse Width : 0.5-15 ms

Contact Now

Product Name	Impeller Automatic Laser Welding Machine
Laser Power	1500W-6000W optional
Laser Source	Raycus Max IPG JPT optioal
Welding Head	HZG Raytool optional
Laser Wavelength	1070nm
Pulse Width	0.5-15ms
Pulse Frequency	≤100Hz
Spot adjusting range	0.1-3mm
Repeating precision	±0.01mm
Cooling System	Water Cooling
Voltage	220V/380V/3-Phase/50Hz/60Hz

CNC Automatic Fiber Laser Welding Machine for High Pressure Water Pump Impeller

Product Tags:

550mm Fiber Laser Path
